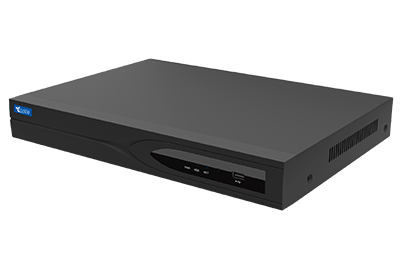

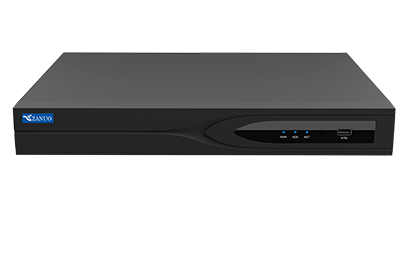

16-ch 2 HDD 16 PoE Ultra AI 4K NVR
Model：NVR8216E-I-16P
- Max. 384 Mbps incoming; Max 16 Channel 8MP IPC input;
- 32-channel 1080P decoding capability; Supports adaptive decoding
- Support 4K HDMI output; Up to 16 channels for playback;
- Support P2P, APP Alarm Push;
- AI by camera: Face Detection, Perimeter Protection, Video Metadata and SMD
- AI by NVR: Face Detection, Face Recognition, Perimeter Protection, and SMD
Technical specifications
| Technical Specifications | |
| System | |
| OS | Embedded Linux |
| OS Operation Interface | Web/operating in local GUI |
| Perimeter Protection by Camera | |
| Performance | 16 channels |
| Face Detection by Camera | |
| Performance | 16 channels |
| Object Detection by Camera | |
| Performance | 16 channels |
| SMD by Camera | |
| Performance | 16 channels |
| Perimeter Protection by NVR | |
| Performance | 4 channels |
| Face Detection by NVR | |
| Performance | 4 channels |
| Face Recognition by NVR | |
| Performance | 2 channels(20 face databases with 100,000 face pictures in total) |
| SMD by NVR | |
| Performance | 8 channels |
| Video&Audio Input | |
| Max bandwidth | 384Mbps |
| IPC Input | 16CH |
| Video & Audio Output | |
| VGA | 1920×1080,1280×1024,1280×720 |
| HDMI | 3840×2160,1920×1080,1280×1024,1280×720 |
| Audio Output | 1CH, RCA (Line out,2Vp-p,300ohms) |
| Audio Encoding | |
| Audio Compression | G.711A |
| Audio Bit Rate | 64Kbps |
| Video&Audio Decoding | |
| IP channel Resolution | Up to 3840×2160 |
| Video decoding | H.265（Main Profile@L5.0 High-tie）/H.264 Up to High Profile@Level5.0） |
| Audio decoding | G.711A, G711U, G726 |
| Synchronous Playback | 16CH |
| Decoding Ability | 32CH 1080P@30FPS/8CH 4K@30FPS |
| Preview | |
| Synchronous Preview | 16 |
| Multi-screen Display | 1, 4, 8, 9, 16, 25 views |
| Playback | |
| Record Mode | Manual; Schedule (general; MD; alarm; intelligent) |
| AI Search | Search by target classification (human, vehicle, non-motor vehicle) |
| Backup | USB device |
| Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off |
| Network | |
| Network Protocol | HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF; SDK |
| Browser | IE; Edge; Google; Firefox |
| HDD | |
| SATA | 2 |
| ESATA | 1 |
| Max Capacity | 16 TB |
| External Interface | |
| PoE Ports | 16 |
| Network Interface | 2 RJ-45( 10/100/1000 Mbps) |
| VGA | 1 |
| HDMI | 2 |
| USB | 2 USB 2.0 (on back panel)，2 USB 2.0+1 USB 3.0 (On front) |
| RCA Input | 1 |
| RCA Output | 2 |
| Alarm Input | 16 |
| Alarm Output | 8 |
| RS-232 | 1 |
| RS-485 | 1 |
| Reset | 1(on the mainboard) |
| Other Function | |
| IPC Access | Support One-Click add IPC function |
| Two-way Talk | Yes |
| Alarm Linkage | Record; Snapshot; Buzzer; Log; Preset; Email |
| Picture Capture | Support JPEG Capture |
| General Parameter | |
| Front Panel | JS |
| Packing | 405x365x123mm |
| Dimensions | 1U 360x311.5x48mm |
| Weight | 3Kg（No HDD） |
| Installation | Desktop Installation |
| Power Supply | AC110V~220V±10% 47Hz～63Hz |
| Working Temperature | -10℃--＋55℃ |
| Working Humidity | 10％--90％ |
| Consumption | 20W (without HDD,without POE) |
| Certifications | |
| Certifications | CE/FCC |
