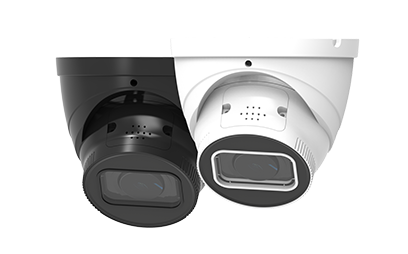

2MP IR Vari-Focal Eyeball Lite AI Network Camera

Model:IPC-E3211M-ZAS

  • 2 MP 1/2.8 CMOS Sensor
  • Support H.264+, H.265+
  • Built-in IR LED; the max. IR illumination distance is 40 m
  • Support Perimeter Protection, Face Detection, SMD
  • Support Built-in Mic & Speaker
  • Supports max. 256 G Micro SD card
  • 2.7 mm–13.5 mm 5x zoom lens
  • 12 VDC/PoE power supply
  • IP67 protection

Technical specifications

DATASHEET (PDF)s

Camera Image Sensor 1/2.8” CMOS
Max. Resolution 2MP, 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.001Lux(Color); 0.0001Lux (B/W); 0Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance IR Distance 40 m
Illuminator Control Auto; Manual
Lens Lens Type Motorized Vari-Focal
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.6
Field of View Horizontal: 109°–30°
Vertical: 56° –17°
Diagonal: 137° –35°
Iris Type Auto
Intelligence Smart Motion Detection Yes
Perimeter Protection Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor)
Face Detection Yes
Object Detection NA
People Counting NA
Heat Map NA
AI Search Work together with NVR
Video Compression H.264H; H.264M; H.264B; H.265
Smart Compression H.264H+; H.264M+; H.264B+; H.265+
Video Frame Rate Main Stream: 2MP (1 fps–25/30 fps)
Sub Stream: D1 (1 fps–25/30 fps)
Third Stream: 720P (1 fps–25/30 fps)
Stream Capability 3 Streams
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 56 Kbps–8192 Kbps
H.265: 56 Kbps–8192 Kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Yes
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 Areas, rectangular)
Image Rotation 90°/180°/270°
Mirror Yes
Privacy Masking 4 Areas
Audio Built-in Mic Yes
Built-in Speaker Yes
Two-way talk Yes
Audio Compression G.711a; G.711Mu; G.726; G.726ASF
Alarm Arming/Disarming NA
Sound Alarm Yes
Light Alarm NA
Alarm Event Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error
Network Network RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol TCP/IP;UDP;HTTP;IGMP;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP
Interoperability ONVIF; CGI; P2P
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; Micro SD card (support max. 256 G/FAT32)
Browser IE: IE8 and later; Chrome; Firefox
Management Software PC Software(SVMS), APP(Zanuo)
Mobile Client IOS; Android
Port Audio Input 1 channel (optional)
Audio Output 1 channel (optional)
Alarm Input 1 channel (optional)
Alarm Output 1 channel (optional)
Power Power Supply 12V DC (±30%)/PoE (802.3af)
Power Consumption Basic: 2.5 W; Max: 6.2W
Environment Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67
Structure Casing Metal
Dimensions 110 mm × Φ122 mm
Net Weight 640g
