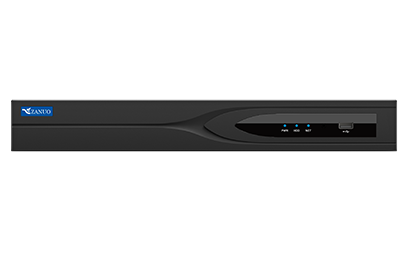

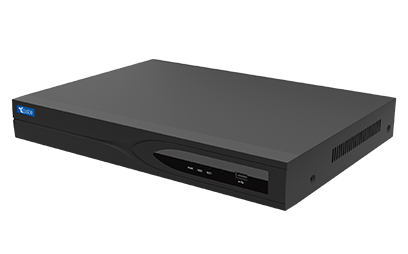

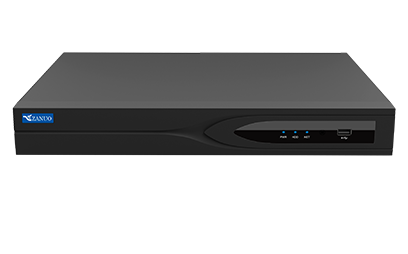

32-ch 2 HDD 16 PoE 4K Pro AI NVR
Model：NVR6232E-I-16P
- Max. 256 Mbps incoming; Max 32 Channel 8MP IPC input;
- 16-channel 1080P decoding capability; Supports adaptive decoding;16 PoE Ports;
- Support 4K HDMI output ; Up to 16 channels for playback;
- Support P2P, APP Alarm Push ; Support AI search;
- AI by camera: Face Detection, Intrusion, Tripwire(classification of human/vehicles /non-motor), Object Detection, and SMD
- AI by NVR: Face Detection, Intrusion, Tripwire(classification of human/vehicles /non-motor), and SMD
Technical specifications
| System | OS | Embedded Linux |
| OS Operation Interface | Web/operating in local GUI | |
| AI by Camera | Perimeter Protection | 16 channels |
| Face Detection | 16 channels | |
| Object Detection | 16 channels | |
| SMD | 16 channels | |
| AI by NVR | Perimeter Protection | 4 channels |
| Face Detection | 4 channels | |
| Face Recognition | NA channels | |
| SMD | 4 channels | |
| Video&Audio Input | Incoming bandwidth | 256Mbps |
| Output bandwidth | 256Mbps | |
| IPC Input | 32CH | |
| Video&Audio Output | VGA | 1920×1080,1280×1024,1280×720 |
| HDMI | 3840×2160,1920×1080,1280×1024,1280×720 | |
| Audio Output | 1CH,RCA(Line out,2Vp-p,300ohms) | |
| Audio Encoding | Audio Compression | G.711A |
| Audio Bit Rate | 64Kbps | |
| Video&Audio Decoding | IP channel Resolution | Up to 3840×2160 |
| Video decoding | H.265（Main Profile@L5.0 High-tie）/H.264 Up to High Profile@Level5.0） | |
| Audio decoding | G.711A,G711U,G726 | |
| Synchronous Playback | 16CH | |
| Decoding Ability | 16CH 1080P@30FPS/4CH 4K@30FPS | |
| Preview | Synchronous Preview | 32 |
| Multi-screen Display | 1, 4, 8, 9, 16, 25, 32 views | |
| Playback | Record Mode | Manual; Schedule (general; MD; alarm; intelligent) |
| AI Search | Search by target classification (human, vehicle,non-motor vehicle) | |
| Backup | USB device | |
| Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off |
|
| Network | Network Protocol | HTTP; TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register |
| Mobile Phone Access | Android; iOS | |
| Interoperability | ONVIF; SDK | |
| Browser | IE8 or later | |
| HDD | SATA | 2 |
| ESATA | 1 | |
| Max Capacity | 14 TB | |
| External Interface | PoE Ports | 16 |
| Network Interface | 1 RJ45 1000M | |
| VGA | 1 | |
| HDMI | 2 | |
| CVBS | 0 | |
| USB | 2 USB 2.0 (on back panel)，1 USB 3.0 (On front) | |
| RCA Input | 1 | |
| RCA Output | 1 | |
| Alarm Input | 8 | |
| Alarm Output | 4 | |
| RS-232 | 1 | |
| RS-485 | 1 | |
| Other Function | IPC Access | Support One-Click add IPC function |
| Two-way Talk | Yes | |
| Alarm Linkage | Record; Snapshot; Buzzer; Log; Preset; Email | |
| Picture Capture | Support JPEG Capture | |
| General Parameter | Front Panel | JS |
| Packing | 405x365x123mm | |
| Dimensions | 1U 360x311.5x48mm | |
| Weight | 3Kg（No HDD） | |
| Installation | Desktop Installation | |
| Power Supply | AC110V~220V±10% 47Hz～63Hz | |
| Working Temperature | -10℃--＋55℃ | |
| Working Humidity | 10％--90％ | |
| Consumption | 20W(without HDD,without POE) | |
| Certifications | Certifications | CE/FCC |
