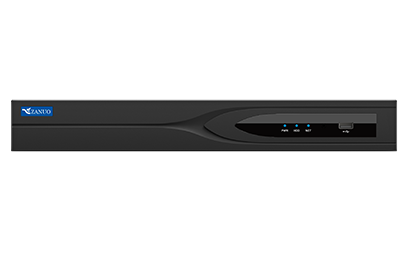

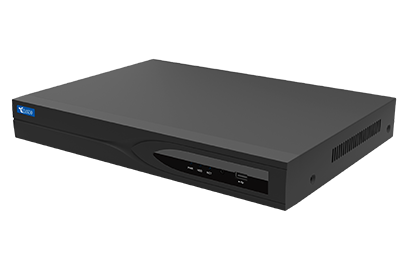

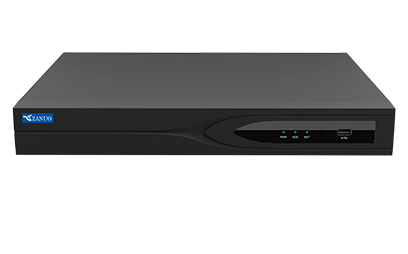

32-ch 2 HDD 4K Pro AI NVR

Model:NVR6232E-I

  • Max. 256 Mbps incoming; Max 32 Channel 8MP IPC input;
  • 16-channel 1080P decoding capability; Supports adaptive decoding;
  • Support 4K HDMI output ; Up to 16 channels for playback;
  • Support P2P, APP Alarm Push ; Support AI search;
  • AI by camera: Face Detection, Intrusion, Tripwire(classification of human/vehicles /non-motor), Object Detection, and SMD
  • AI by NVR: Face Detection, Intrusion, Tripwire(classification of human/vehicles /non-motor), and SMD

Technical specifications

DATASHEET (PDF)s

System OS Embedded Linux
OS Operation Interface Web/operating in local GUI
AI by Camera Perimeter Protection 16 channels
Face Detection 16 channels
Object Detection 16 channels
SMD 16 channels
AI by NVR Perimeter Protection 4 channels
Face Detection 4 channels
Face Recognition NA
SMD 4 channels
Video&Audio Input Incoming bandwidth 256Mbps
Output bandwidth 256Mbps
IPC Input 32CH
Video&Audio Output VGA 1920×1080,1280×1024,1280×720
HDMI 3840×2160,1920×1080,1280×1024,1280×720
Audio Output 1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding Audio Compression G.711A
Audio Bit Rate 64Kbps
Video&Audio Decoding IP channel Resolution Up to 3840×2160
Video decoding H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
Audio decoding G.711A,G711U,G726
Synchronous Playback 16CH
Decoding Ability 16CH 1080P@30FPS/4CH 4K@30FPS
Preview Synchronous Preview 32
Multi-screen Display 1, 4, 8, 9, 16, 25, 32 views
Playback Record Mode Manual; Schedule (general; MD; alarm; intelligent)
AI Search Search by target classification (human, vehicle,non-motor vehicle)
Backup USB device
Playback Function 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Network Network Protocol HTTP;  TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF; SDK
Browser IE8 or later
HDD SATA 2
ESATA 1
Max Capacity 14 TB
External Interface PoE Ports 0
Network Interface 2 RJ45 1000M
VGA 1
HDMI 2
CVBS 0
USB 2 USB 2.0 (on back panel),1 USB 3.0 (On front)
RCA Input 1
RCA Output 1
Alarm Input 8
Alarm Output 4
RS-232 1
RS-485 1
Other Function IPC Access Support One-Click add IPC function
Two-way  Talk Yes
Alarm Linkage Record; Snapshot; Buzzer; Log; Preset; Email
Picture Capture Support JPEG Capture
General Parameter Front Panel JS
Packing 405x365x123mm
Dimensions 1U  360x311.5x48mm
Weight 3Kg(No HDD)
Installation Desktop Installation
Power Supply DC 12V 3A
Working Temperature -10℃--+55℃
Working Humidity 10%--90%
Consumption 20W(without HDD)
Certifications Certifications CE/FCC
