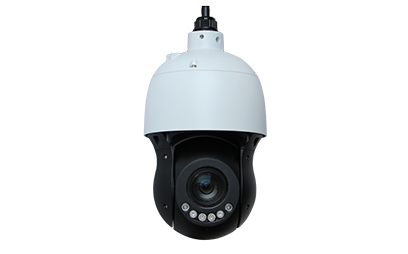

4MP 33x Starlight Network PTZ Camera
Model：SD4A433-H
- 1/2.8” Progressive Scan 4MP CMOS
- 5.5-180mm;33x optical zoom
- Starlight technology
- Red and blue warning lights(optional)
- Built in Mic(optional)
- Smart Features(Optional)
- IR distance up to 120 m
- IP66
Technical specifications
| Camera | Image Sensor | 1/2.8” Progressive Scan 4MP CMOS |
| Min. Illumination | Color:0.001 Lux @(F1.5,AGC ON);Black:0.0005Lux @(F1.5,AGC ON); | |
| Shutter Time | 1/25 to 1/100,000s | |
| Day & Night | IR Cut Filter | |
| Lens | Focal Length | 5.5-180mm;33x optical zoom |
| Digital zoom | 16x digital zoom | |
| Aperture Range | F1.5-F4.0 | |
| Field of View | H: 57°(wide)-2.3° (tele);V: 32.6°(wide)-1.3° (tele) | |
| Working Distance | 100mm-1000mm (wide-tele) | |
| Zoom Speed | Approx. 3.5s (optical lens, wide-tele) | |
| Compression | Video Compression | H.265 / H.264 / MJPEG |
| Audio Compression | G.711a/G.711u/G.722.1/G.726/MP2L2/AAC/PCM | |
| Image | Resolution | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Image Setting | Corridor mode, saturation, brightness, contrast and sharpness can be adjusted by client or browser | |
| BLC | Support | |
| Exposure Mode | Automatic exposure/aperture priority/shutter priority/manual exposure | |
| Focus Control | Auto focus/one-time focus/manual focus | |
| Area Exposure/Focus | Support | |
| Defog | Support | |
| EIS | Support | |
| Day &Night | Auto(ICR) / Color / B/W | |
| 3D Noise Reduction | Support | |
| Image overlay | Support BMP 24 bit image overlay, optional region | |
| ROI | ROI supports one fixed region for each three-bit stream | |
| Network | Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NFS, SMB/ CIFS) |
| Protocol | ONVIF(PROFILE S,PROFILE G) ,GB28181-2016 | |
| PTZ | Pan Range | 360° endless |
| Pan Speed | 0.1°~120° /s | |
| Tilt Range | -18°~90° | |
| Tilt Speed | 0.1°~120°/s | |
| Number of Preset | 255 | |
| Patrol | 6 patrols, up to 18 presets per patrol | |
| Pattern | 4 , with the total recording time not less than 10 mins | |
| Power loss recovery | Support | |
| Infrared | IR distance | Up to 120m |
| IR intensity | Automatically adjusted, depending on the zoom ratio | |
| Port | Audio I/O | 1 input,1 output(optical) |
| Alarm I/O | 1 input,1 output(optical) | |
| General | Power | DC12V 3A, PoE(803.at) |
| Working temperature | -40℃ -60℃ | |
| Humidity | 90% or less | |
| Protection level | Ip66, TVS 4000V Lightning protection, surge protection | |
| Mount option | Wall Mounting, Ceiling Mounting | |
| Weight | 3.5kg |
