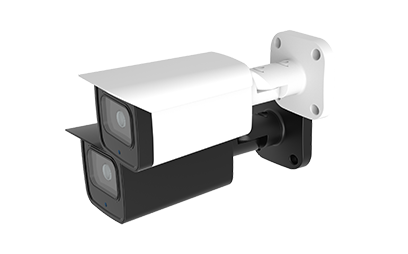

4MP IR Fixed-Focal Bullet Lite AI Network Camera


  • 4 MP 1/1.8 CMOS Sensor
  • Support H.264+, H.265+
  • Built-in IR LED; the max. IR illumination distance is 60 m
  • Support Perimeter Protection, Face Detection, SMD
  • Support Built-in Mic & Speaker
  • Supports max. 256 G Micro SD card
  • 2.8mm fixed lens (3.6mm/6mm optional)
  • 12 VDC/PoE power supply
  • IP67 protection

Technical specifications


Camera Image Sensor 1/1.8” CMOS
Max. Resolution 4MP, 2688 (H) × 1520 (V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0006 lux@F1.6 (Color, 30 IRE),0.0004 lux@F1.6 (B/W, 30 IRE),0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance IR Distance 60 m
Illuminator Control Auto; Manual
Lens Lens Type Fixed-Focal
Focal Length 2.8mm/3.6mm/6.0mm
Max. Aperture F1.6
Iris Type Auto
Intelligence Smart Motion Detection Yes
Perimeter Protection Intrusion,Tripwire(Support the classification of Vehicle, Human and Non-Motor)
Face Detection Yes
Object Detection NA
People Counting Yes
Heat Map NA
AI Search Work together with NVR
Video Compression H.264H; H.264M; H.264B; H.265
Smart Compression H.264H+; H.264M+; H.264B+; H.265+
Video Frame Rate Main Stream: 4MP (1 fps–25/30 fps)
Sub Stream: D1 (1 fps–25/30 fps)
Third Stream: 720P (1 fps–25/30 fps)
Stream Capability 3 Streams
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 56 Kbps–8192 Kbps
H.265: 56 Kbps–8192 Kbps
Day/Night Color/B/W
WDR 140 dB
White Balance Yes
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 Areas, rectangular)
Image Rotation 90°/180°/270°
Mirror Yes
Privacy Masking 4 Areas
Audio Built-in Mic Yes
Built-in Speaker Yes
Two-way talk Yes
Audio Compression G.711a; G.711Mu; G.726; G.726ASF
Alarm Arming/Disarming NA
Sound Alarm Yes
Light Alarm NA
Alarm Event Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error
Network Network RJ-45 (10/100 Base-T)
SDK and API Yes
Interoperability ONVIF; CGI; P2P
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; Micro SD card (support max. 256 G/FAT32)
Browser IE: IE8 and later; Chrome; Firefox
Management Software PC Software(SVMS), APP(Zanuo)
Mobile Client IOS; Android
Port Audio Input 1 channel (optional)
Audio Output 1 channel (optional)
Alarm Input 1 channel (optional)
Alarm Output 1 channel (optional)
Power Power Supply 12V DC (±30%)/PoE (802.3af)
Power Consumption Basic: 2.5 W ; Max. 5.2W
Environment Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67
Structure Casing Metal
Dimensions 224 mm × 77mm × 76mm
Net Weight 750g
