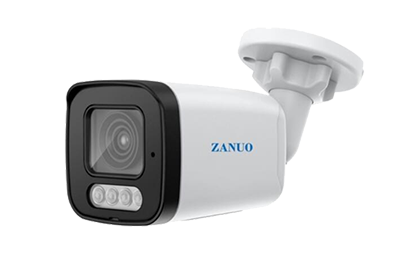

4MP Smart Dual Light Fixed-Focal Bullet Network Camera

Model:IPC-B1410C-S2-L

  • 4 MP 1/2.8" CMOS Sensor
  • Support H.264+, H.265+
  • IR Light: 30 m, White Light: 20m
  • 2.8mm fixed lens (3.6mm optional)
  • 12 VDC/PoE power supply
  • IP67 protection

Technical specifications

DATASHEET (PDF)s

Camera Image Sensor 1/2.8” CMOS
Max. Resolution 4MP
Scanning System Progressive
Electronic Shutter Speed Auto(1/25s ~ 1/1000)
Min. Illumination 0.01 Lux @F2.0
S/N Ratio > 56 dB
Illumination Distance IR Light: 30 m, White Light: 20m
Illuminator Control Auto; Manual
Lens Lens Type Fixed-Focal
Focal Length 2.8mm/3.6mm
Max. Aperture F2.0
Iris Type Auto
Intelligence Human Detection Support
Smart Motion Detection Support(based on Human Detection)
Perimeter Protection NA
Face Detection NA
Object Detection NA
People Counting NA
Heat Map NA
AI Search NA
Video Compression H.264H; H.264M; H.264B; H.265
Video Frame Rate Main Stream: 4MP (1 fps–25/30 fps)
Sub Stream: D1 (1 fps–25/30 fps)
Stream Capability 2 Streams
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 1792Kbps~4Mbps
H.265: 1792Kbps~4Mbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Yes
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 Areas, rectangular)
Image Rotation 0°/180°
Mirror Yes
Privacy Masking 4 Areas
Audio Built-in Mic NA (optional)
Built-in Speaker NA (optional)
Alarm Alarm Event Disconnection; IP Conflict; No SD Card; Capacity Warning; SD Card Error
Network Network RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol TCP/IP;UDP;HTTP;DHCP;DDNS;FTP;UPNP
Interoperability ONVIF; CGI
Storage SD Card (Optional)
Browser IE: IE8 and later
Management Software PC Software(SVMS)
Mobile Client IOS; Android
Port Audio Input NA (optional)
Audio Output NA (optional)
Alarm Input NA (optional)
Alarm Output NA (optional)
Power Power Supply 12V DC (±30%)/PoE (802.3af)
Power Consumption Max. 3W
Environment Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
Storage Conditions –40°C to +60°C (–40°F to +140°F)
Protection Grade IP67
Structure Casing Metal( pedestal: plastic )
Dimensions 70mm×70mmx170mm
Net Weight 420g

This datasheet is subject to change without prior notice. Please contact us to get the latest datasheet.
