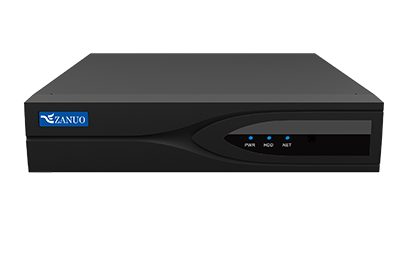

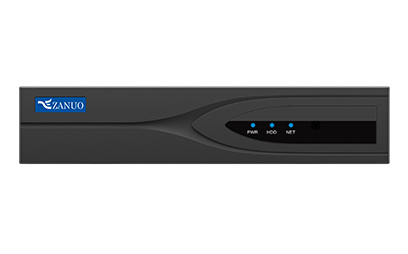

8-ch 1 HDD 8 PoE 4K NVR

Model:NVR5108C-8P

  • Max. 96 Mbps incoming; Max 8 Channel 8MP IPC input;
  • 6-channel 1080P decoding capability;
  • Support 4K HDMI output; Up to 8 channels for playback; 8 PoE ports;
  • Support P2P, APP Alarm Push; Support AI search;
  • AI by camera: Face Detection, Intrusion, Tripwire(classification of human/vehicles /non-motor), Object Detection, and SMD

Technical specifications

DATASHEET (PDF)s

System OS Embedded Linux
OS Operation Interface Web/operating in local GUI
AI by Camera Perimeter Protection 8 channels
Face Detection 8 channels
SMD 8 channels
Video&Audio Input Incoming bandwidth 96Mbps
Output bandwidth 96Mbps
IPC Input 8CH
Video&Audio Output VGA 1920×1080,1280×1024,1280×720,1024×768
HDMI 3840×2160,1920×1080,1280×1024,1280×720,1024×768
Audio Output 1CH,RCA(Line out,2Vp-p,300ohms)
Audio Encoding Audio Compression G.711A
Audio Bit Rate 8Kbps(16bit)
Video&Audio Decoding IP channel Resolution Up to 3840×2160
Video decoding H.265(Main Profile@L5.0 High-tie)/H.264 Up to High Profile@Level5.0)
Audio decoding G.711A,G711U,G726
Synchronous Playback 8CH
Decoding Ability 4CH 1080P@30FPS/1CH 4K@30FPS
Preview Synchronous Preview 8
Multi-screen Display 1, 4, 8, 9 views
Playback Record Mode Manual; Schedule (general; MD; alarm; intelligent)
AI Search Search by target classification (human, vehicle,non-motor vehicle)
Backup USB device
Playback Function 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file); partially enlarge; audio on/off
Network Network Protocol HTTP;  TCP/IP; IPv4; UPnP; SNMP; RTSP;UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; P2P; Auto register
Mobile Phone Access Android; iOS
Interoperability ONVIF; SDK
Browser IE8 or later
HDD SATA 1
ESATA 0
Max Capacity 14 TB
External Interface PoE Ports 8
Network Interface 1 RJ45 100M
VGA 1
HDMI 1
CVBS 0
USB 2*USB2.0 on Back Panel
RCA Input 1
RCA Output 1
Alarm Input 0
Alarm Output 0
RS-232 0
RS-485 0
Other Function Two-way  Talk Yes
Alarm Linkage Record; Snapshot; Buzzer; Log; Preset; Email
Picture Capture Support JPEG Capture
General Parameter Front Panel C
Packing 410x293x60mm
Dimensions Mini 1U 215x235x45mm
Weight 1.7Kg(No HDD)
Installation Desktop Installation
Power Supply DC 48V/1.875A
Working Temperature -10℃--+55℃
Working Humidity 10%--90%
Consumption 7W(without HDD)
Certifications Certifications CE/FCC
